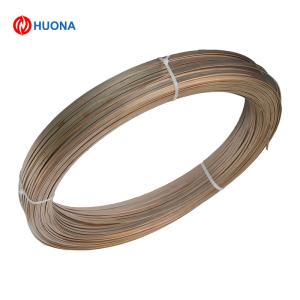

Enameled Bare Wire Copper Manganese Alloy Manganin Resistance Ribbon

Name: Enameled Bare Wire Copper Manganese Alloy Manganin Resistance Ribbon
Brand: HUONA
Price: 16 USD

Brand Name : HUONA

Model Number : 6J13

Certification : ISO9001, RoHS

Place of Origin : China

MOQ : 1KG

Price : $16/KG-$19/ KG

Payment Terms : T/T

Supply Ability : 100 Ton/Month

Delivery Time : Around a week

Packaging Details : Spool, Carton, Wooden Case

Product name : Copper-Manganese Alloy

Product grade : 6j13

Product composition : Copper-Manganese

Product type : Wire/ Ribbon

Quality : High quality

Diameter : 0.02-10.0mm

Contact Now

Basic Info.

Model NO.

6J13

Shape

Coil

Surface

Birght

Width

200mm

Thickness

0.1-3.0mm

Diameter

0.02-10.0mm

Density

8.4G/Cm3

Resistivity

0.44

Type

Copper Wire

Application

Water Heater, Air Condition or Refrigerator

Alloy

Standard

GB/T

Transport Package

Wooden Case

Specification

0.02-10.0mm

Trademark

Huona

Origin

China

HS Code

7506220000

Production Capacity

1500ton/Year

Product Description

Enameled Bare Wire Copper-Manganese Alloy Manganin Resistance ribbon / flat Wire

Product Description

Shunt Manganin widely used for Shunt resistor with the highest requirements, shunt manganin has been used in precision built electrical components such as Wheatstone bridges, decade boxes, voltage drivers, potentiometers and resistance standards.

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2~5	11~13	<0.5	micro	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	0-100ºC
Resisivity at 20ºC	0.44±0.04ohm mm2/m
Density	8.4 g/cm3
Thermal Conductivity	40 KJ/m·h·ºC
Temp Coefficient of Resistance at 20 ºC	0~40α×10-6/ºC
Melting Point	1450ºC
Tensile Strength(Hard)	585 Mpa(min)
Tensile Strength,N/mm2 Annealed,Soft	390-535
Elongation	6~15%
EMF vs Cu, μV/ºC (0~100ºC)	2(max)
Micrographic Structure	austenite
Magnetic Property	non
Hardness	200-260HB
Micrographic Structure	Ferrite
Magnetic Property	Magnetic
